PRODUCT OVERVIEW
The Sniper W-30 is an ultra-light, all-in-one remote weapon station, ready for combat at any time, capable of mounting small-caliber machine guns.

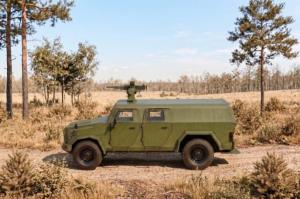

It can be installed on a tripod for fixed-position defense, or mounted on small manned or unmanned vehicles to effectively engage enemy personnel or provide fire support.
Through tactical deployment, it can conduct reconnaissance, target elimination, provide fire support during assault operations, as well as security and area control missions in complex battlefield environments.
Sniper W-30 Equipped with a multi-sensor smart camera, it enables day/night reconnoiter through its color camera and infrared camera. The laser rangefinder provides precise target ranging.
The Sniper W-30 is integrated with a commander-style fire control system, ensuring high accuracy and rapid response when engaging targets.
The Sniper W-30 features AI-enabled capabilities for coordinated operations with radar, forming an integrated detection-and-engagement counter-UAV solution against Low, Slow, Small Drones (LSS) drones. When the radar detects a UAV target within a range of up to 5 km, the K30 automatically slews to the direction of the target in real time.
As the target closes to 1,000m, the Sniper W-30's camera autonomously identifies and locks onto the target. Then the system executes intelligent fire control computation and executes the UAV neutralization sequence.
TECHNICAL SPECIFICATIONS
|
Specification
Category
|
System Attribute
|
Parameter
|
|
Machine Gun
|
Mass
|
10.5 kg (23.15 lb)
|
|
Length
|
1,105 mm (43.5 in)
|
|
Barrel length
|
560 mm (22.0 in)
|
|
Cartridge
|
7.62×51mm NATO
|
|
Caliber
|
7.62 mm (0.308 in)
|
|
Action
|
Gas-operated,
short-stroke gas piston,
opened rotating bolt
|
|
Rate of fire
|
550-650 rounds/min
|
|
Muzzle velocity
|
2,800 ft/s (853 m/s)
|
|
Effective firing range
|
1,200 yd (1,100 m)
|
|
Maximum firing range
|
4,073 yd (3,724 m)
|
|
Feed system
|
Disintegrating belt with M13
Links
|
|
Sights
|
Iron sights
|
|
Weapon Station
|
Counter-UAS Capability
|
• Effective anti-UAVs: 1000m
• Maximum firing range: 3000m
|
|
Compatible Weapons
|
Machine Guns: M60
Ammunition: 7.62mm NATO
|
|
Wight
|
≤25kg (without guns and ammunitions)
|
|
Azimuth Coverage
|
360°
|
|
Elevation Coverage
|
-20° to +45° (Depends on Weapon)
|
|
Slew Rate
|
Azimuth : Max ≥60°/s, Min ≤0.03°/s
Elevation : Max ≥45°/s, Min ≤0.03°/s
|
|
Slew Rate Accelerations
|
Azimuth : Max ≥60°/s2
Elevation : Max ≥60°/s2
|
|
Maximum tracking rates
|
Azimuth : Max ≥5°/s
Elevation: Max ≥5°/s
|
|
Power
|
DC30-52V ≤300w
|
|
E0/IR on
weapon station
|
Wight
|
≤3kg
|
|
EO
|
1920×1080 Pixels
30FPS
WFOV: 61.9°×37.4°
NFOV: 2.3°×1.3°
|
|
IR
|
640×512 Pixels
30FPS
WFOV: 9°×7°
|
|
Azimuth Coverage
|
360°
|
|
Elevation Coverage
|
-20°~+60°
|
|
Slew Rate Accelerations
|
Azimuth : Max ≥90°/s, Min ≤0.03°/s
Elevation: Max ≥60°/s, Min ≤0.03°/s
|
|
Detection distance
|
EO: ≤ 2000m (Depend on type of target)
IR: ≤ 1,000m (Depend on type of target)
LRF: ≤ 1200-1500m (Depend on type of target)
|
|
Tracking mode
|
Manual tracking, automatic tracking
and radar-guided tracking
|
|
Intelligence
|
Support personnel, vehicles and UAVs
target detection, recognition and tracking
|
|
Detection angle
|
Azimuth is n×360° and the pitch is -20°~+60°
|
